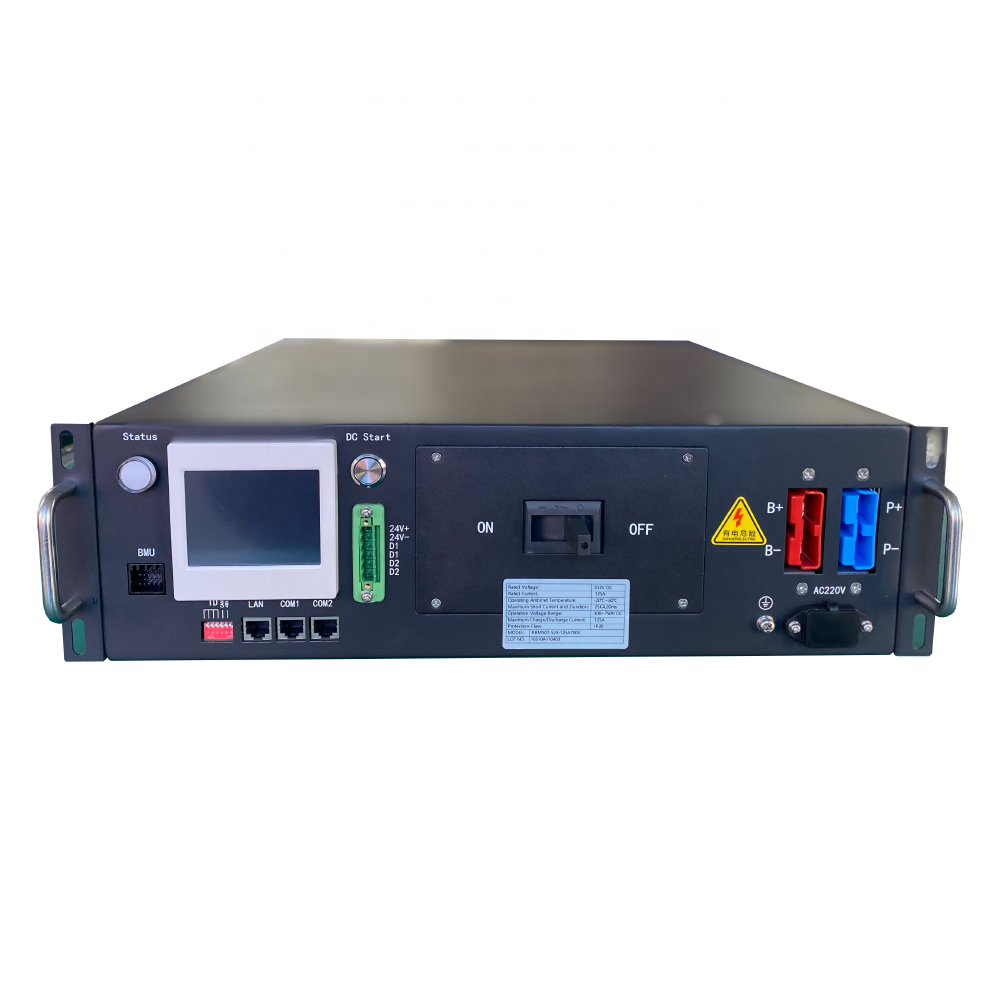

Iron high voltage BMS(HV BMS) 120S Cells 384V 160A With Relay Breaker 15S BMU

Brand Name : GCE

Model Number : RBMS07S23-160A384V

Certification : CE/RoHS/UN38.3/MSDS

Place of Origin : china

MOQ : 2

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000+pcs+1 month

Delivery Time : 8-15 days

Packaging Details : Corrugated Carton,685*560*200mm

Material : Iron

color : black

Communication : CAN, RS485

OEM/ODM : Acceptable

Warranty : 3 years

Contact Now

GCE 120S cells 384V 160A high voltage BMS(HV BMS) master BMS with relay breaker 15S BMU in series for battery energy storage system

BMS Gonfiguration:
120S 384V 160A high voltage BMS(HV BMS) * 1set
15S BMU * 8 sets
15S wire harness *8 sets
(15S48V battery module, 8 modules in series for 120S 384V 160A system)

Iron high voltage BMS(HV BMS) 120S Cells 384V 160A With Relay Breaker 15S BMU

Accessories

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
 supply,consumption less 20mA, CAN2.0 B communication

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
 Fan wire: 600mm

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Specification

Product Name	BMS
Model no.	RBMS07S2-3-160A384V
protecting method	MCCB+Contactor
Rated Current range	-160A~160A
Voltage Range	120V-680V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	8
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	2U (44088500)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	17kg

BMS System Structure

Product Feature

1.	Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
2.	perfect self-test and operational status detection, with HMI display, system operation information at a glance.
3.	perfect and reliable system control and protection strategies to fully protect the battery safety, extend the life of the battery escort.
4.	Modular design, configurable, scalable --- flexible combination of multiple energy storage unit can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
5.	Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.
6.	Flexible communication interface protocol --- The company comes with the company's communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
7.	Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.
8.	PCS has a protocol control function, the choice of circuit breaker version .
9.	PCS without protocol control function, the choice of contactor + breaker version.
10.	Automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).
